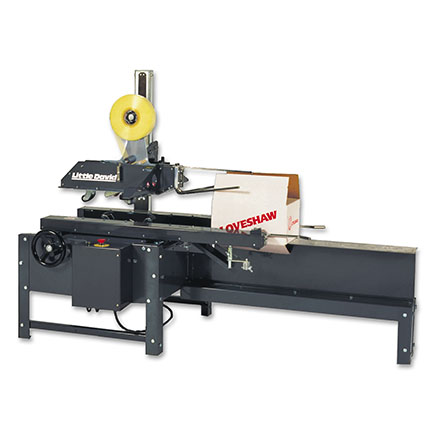

SP-304 Case Sealer

SP-304 Case Sealer Specifications

Power Requirements:

• 110 VAC, single phase, 60 cycle, 8.0 Amps

Operating Speed:

• Continuous belt drive; 76' per minute (18.3 m/min.)
  (production rate depends on box size & operator dexterity)

Weight:

• 300 lbs. (136 kg) uncrated

Case Capacity: (with 2" wide CaseLocker ST® Cartridge)

• Minimum:
  Height: 4-1/2" (114mm)
  Width: 4-1/2" (114mm)
  Length: 6" (152mm)

• Maximum:
  Height: 24" (610mm)
  Width: 20" (508mm)
  Length: 24" (610mm)

SP-304 Case Sealer Features

• 2 Year Gear Motor Warranty
• 2 Year Gear Reducer Warranty
• 3 Year Cartridge Warranty
• Tapes cases from 4-1/2" (114mm) to 24" (610mm) in height
• Plug-in operation
• Minimal operator training required
• Sealed drive system
• CaseLocker ST™ tape cartridge requires no lubrication and alleviates twisting motion known to cause carpal tunnel syndrome
• Self-centering belts
• Patented single mast design allows clear access
• Knife guard system of the CaseLocker ST® tape cartridge prevents the blades from being exposed except for when the rollers have been depressed

SP-304 Case Sealer Video

SP-304 Case Sealer Brochure

Download Brochure

SP-304 Case Sealer Photos
