SGP 2332 / 4332

SGP 2332 / 4332 Specifications

Heat weld sealing preheating time 30 s

Electrical supply Single phase AC 230 V / 50 Hz, 1PNE and 115 V / 60 Hz, 1PNE Tolerance -15%/+20% Mains fuse 10 AT

Performance at 225VAC



  Modus Sleep Modus Stand-by Modus Oper. Max
Watt 50 W 70 W 607 W
Volt Ampere 53 VA 78 VA 622 VA
Reactive Power 19 VAR 33 VAR 193 VAR
Power Factor PF 0,61 PF 0,82 PF 0,98
COS Phi 0,94 0,91 0,99
Ampere 0,28 A 0,38 A 3,0 A





Room temperature 5 - 40°C (41 - 104°F)

Relative humidity 10 - 85%

Cycles per minute up to* (without conveyor) 70/min.

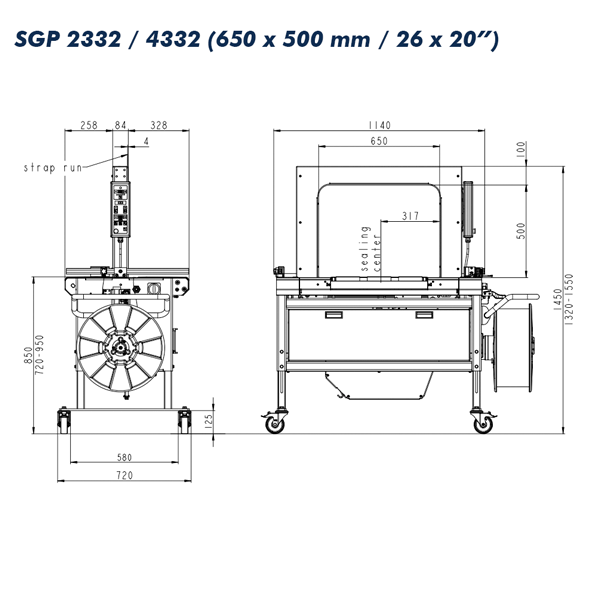

Working Heights see layout

Conveyor driven conveyor belt

Conveyor speed, stepless 5 – 45 min (5,5 – 50 yd/ min)

Machine Weight 300 kg (660 lbs)

Material stainless steel

IP- Protection level IP 56 / DIN 60529 + IPX9K / ISO 20653



Packages

Weight x height min 100 x 50 mm (4 x 2")
Width / height max ./.50 mm (./.2")
Arch Dimension
Length min. 200 mm (8")
Weight max 35 kg (77lbs)



Plastic Strap (PP)

Strap width 5 mm (1/4")
  9 mm (3/8")
  12 mm (1/2")
Strap thickness 0,40 - 0,60 mm (0,015 - 0,024")
Strap coil, Ø inside/outside 200 / 430 mm (8/17")
Strap tension 5 mm (1/4") 300 N
9 - 12 mm (3/8 / 1/2") 450 N

The polypropylene straps used for the respective applications must correspond with the strap specifications recommended by Signode! *Performance: Depends on arch and package dimensions, conveyor speed, package distances and strap tension.

Arch dimension

Machines Strap Width Arch Dimension (wxh) Strap Tension
SGP 2332 / 4332 5 mm (1/4") 650 x 500 mm (26 x 20") 300 N
  9 / 12 mm (3/8 / 1/2") 650 x 500 mm (26 x 20") 450 N

SGP 2332 / 4332 Features

■ Adjustable conveyor height

■ Fold-out belt conveyor system

■ Four swivel castors with brakes

■ Closed strap arch system

■ Heat seal

■ Automatic strap feeder

■ Automatic strap end ejection

■ Strap loop ejection for cycles without product

■ Cycle counter

■ Electronic control system with microprocessor + Siemens S7-1200 PLC, free memory capacity for peripheral modules

■ Machine-stop button

■ Dispenser position: Side mounted

■ Electrical power cable, 5 m / 5,5 yd.

■ Basic photocell

■ for detecting and positioning the packages

■ Operation / indication

■ Control panel, mounted on dispenser side

■ Graphic display for program selection and strap spacings

■ Error message display

■ Interface

■ 24 pin Harting connector

■ Output signals (potential free)

■ Ready signal to feed conveyor

■ General fault signal

■ Input signal (potential free)

■ Ready signal from follow-on conveyor

SGP 2332 / 4332 Video

SGP 2332 / 4332 Brochure

SGP 2332 / 4332

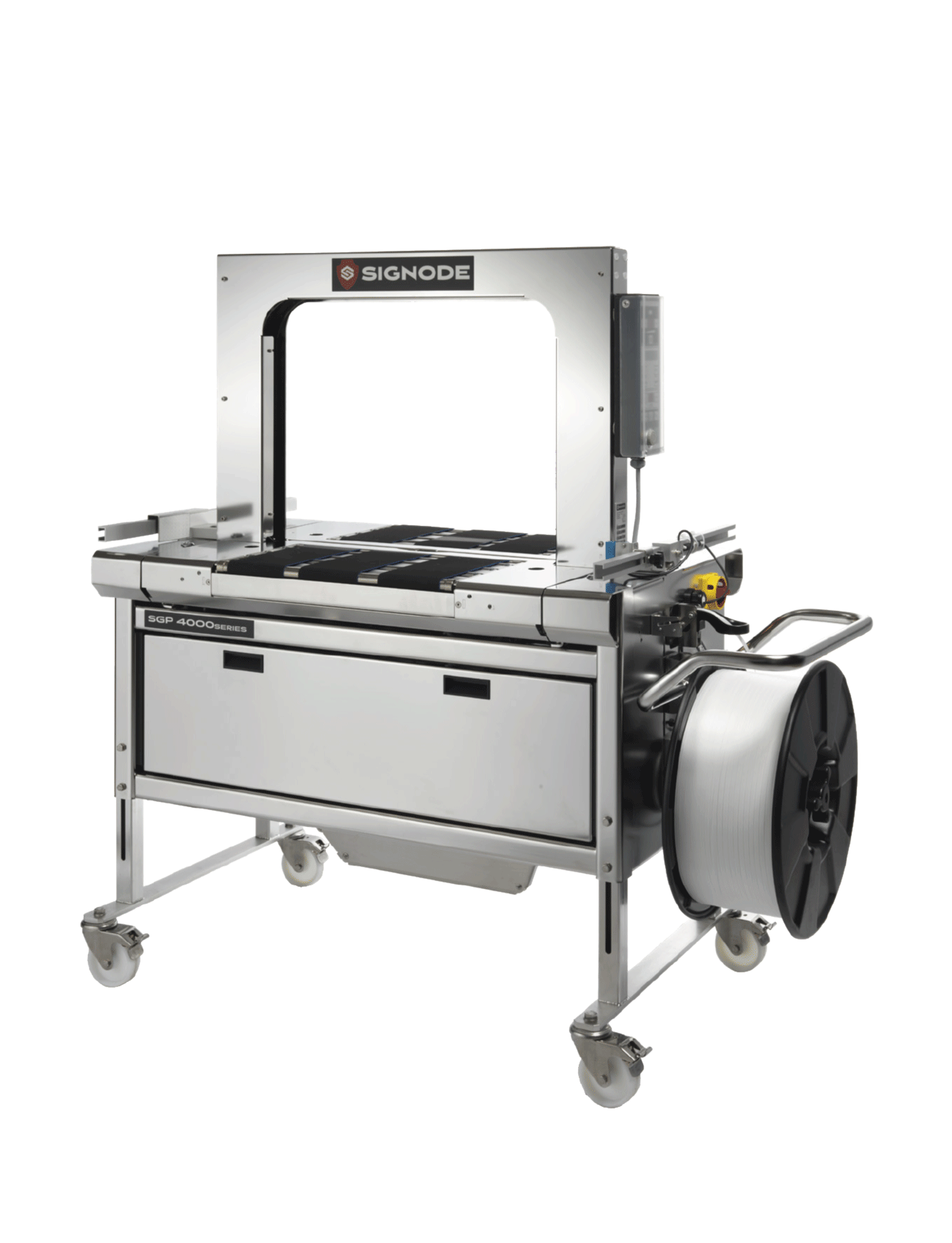

SGP 2332 / 4332 Photos
